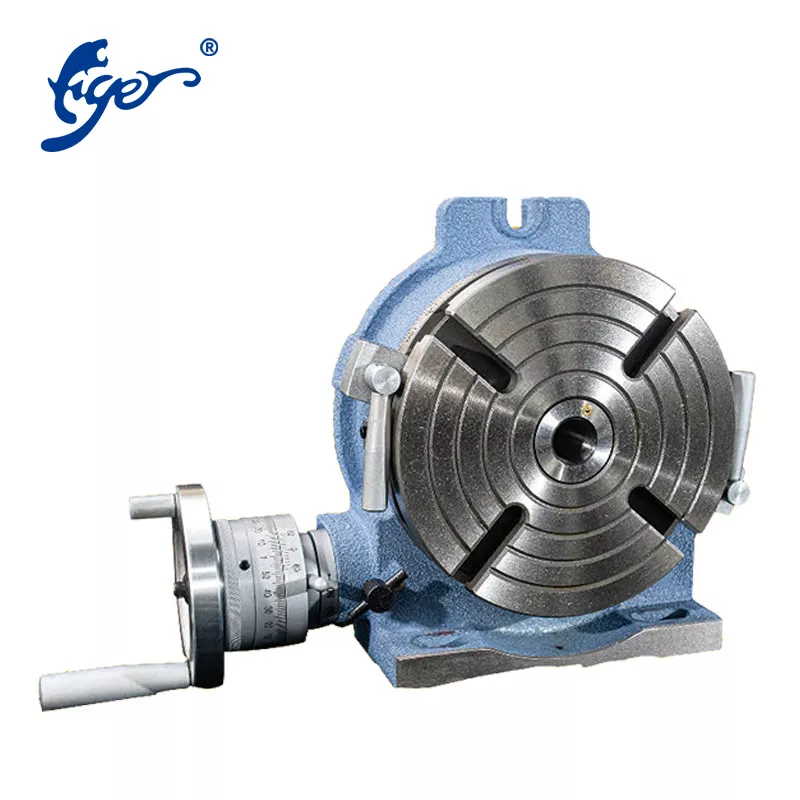

Technical Parameter
| Specifications Metriclnch lterns |
TSL75 HV3 |
TSL100 HV4 |
TSL125 Hv5 |
TSL150 (HV6) |
TSL200 (HV8) |
| Diameter of table mm | 76.2 | 110 | 中127 | 150 | 200 |
| Morse taper of the center hole | MT2 | MT2 | MT2 | MT2 | MT3 |
| Height of center for verti mounting mm | 59 | 85.5 | 90 | 100 | 135 |
| Width of T-slot mmx | 8 | 12 | 12 | 14 | 14 |
| Adjacent angle of T-slot | 90 | 120 | 120 | 90 | 90 |
| Width of the locting key mm | 12 | 12 | 12 | 16 | 16 |
| Modules of worm and worm gear | 1 | 1 | 1 | 1 | 1.5 |
| Transmission ratio of the worm gear | 1:36 | 0.091666667 | 0.091666667 | 0.104166667 | 0.104166667 |
| Graduation of the table | 360° | 360 | 360 | 360 | 360° |
| Rotating angle of table with one revolution of the wrom | 10 | 5 | 5 | 4″(1’Per graduation) | |
| Minimum value of vernier | / | / | / | 10 | 10 |
| Indexing accuracy | / | / | / | 60 | 60 |
| Max, bearing ( With table Hor. ) kg | 15 | 40 | 50 | 100 | 150 |
| Max. bearing (With table vert. )kg | 10 | 20 | 25 | 50 | 75 |
| Specifications Metriclnch lterns |
TSL250 (HV10) |
TSL300 (HV12) |
TSL350 (HV14) |
TSL400 (HV16) |
TSL630 (HV20) |
| Diameter of table mm | 250 | 300 | 350 | 400 | 630 |
| Morse taper of the center hole | MT3 | MT4 | MT4 | MT4 | 200 |
| Height of center for verti mounting mm | 165 | 195 | 230 | 260 | 400 |
| Width of T-slot mmx | 14 | 16 | 16 | 16 | |
| Adjacent angle of T-slot | 60 | 60 | 60 | 60 | 18 |
| Width of the locting key mm | 16 | 16 | 16 | 18 | 22 |
| Modules of worm and worm gear | 1.5 | 2 | 2 | 2.5 | 4 |
| Transmission ratio of the worm gear | 0.104166667 | 0.104166667 | 0.104166667 | 0.104166667 | 1:20 |
| Graduation of the table | 360 | 360 | 360 | 360 | 360 |
| Rotating angle of table with one revolution of the wrom | 4″(1’Per graduation) | 3 | |||
| Minimum value of vernier | 10 | 10 | 10 | 10 | 10 |
| Indexing accuracy | 60 | 60 | 60 | 60 | 60 |
| Max, bearing ( With table Hor. ) kg | 200 | 250 | 300 | 350 | 450 |
| Max. bearing (With table vert. )kg | 100 | 125 | 150 | 175 | 200 |
| Metriclnch MODEL |
TSL75(HV-3) | TSL100(HV-4) | TSL125(HV-5) | TSL150(HV-6) | TSL200(HV-8) |
| A | 98 | 146 | 155 | 200 | 265 |
| B | 78 | 115 | 127 | 160 | 220 |
| C | 59 | 85.5 | 90 | 100 | 135 |
| D | 76.2 | 110 | 127 | 150 | 200 |
| E | 12 | 12 | 12 | 16 | 16 |
| G | 1 | 16 | 17 | ||
| H | 83 | 85 | 85 | 86 | 105 |
| J | 15 | 10 | 15 | ||
| M | MT2 | MT2 | MT2 | MT2 | MT3 |
| N | 68 | 68 | 68 | 78 | 98 |
| Net weight kg | 8 | 11 | 13.5 | 14 | 28 |
| Gross weight kg | 9 | 11.5 | 14 | 15 | 30 |
| Gase dimensions | 187x94x113 | 294x243x130 | 294x243x130 | 294x243x130 | 380x300x160 |
| Metriclnch MODEL |
TSL250(HV-10) | TSL300(HV-12) | TSL350(HV-14) | TSL400(HV-16) | TSL630(HV-20) |
| A | 325 | 388 | 450 | 525 | 765 |
| B | 280 | 330 | 390 | 450 | 680 |
| C | 165 | 195 | 230 | 260 | 400 |
| D | 250 | 300 | 350 | 400 | 630 |
| E | 16 | 16 | 16 | 18 | 22 |
| G | 17 | 17 | 17 | 17 | 22 |
| H | 120 | 135 | 135 | 145 | 220 |
| J | 15 | 1 | 30 | ||
| M | Mt3 | MT4 | MT4 | Mt4 | 200 |
| N | 110 | 130 | 130 | 130 | 220 |
| Net weight kg | 43 | 71 | 83 | 93 | 500 |
| Gross weight kg | 45 | 73 | 85 | 95 | 550 |
| Gase dimensions | 430x350x180 | 550x450x190 | 550x480x190 | 550x500x200 | 820x820x240 |
