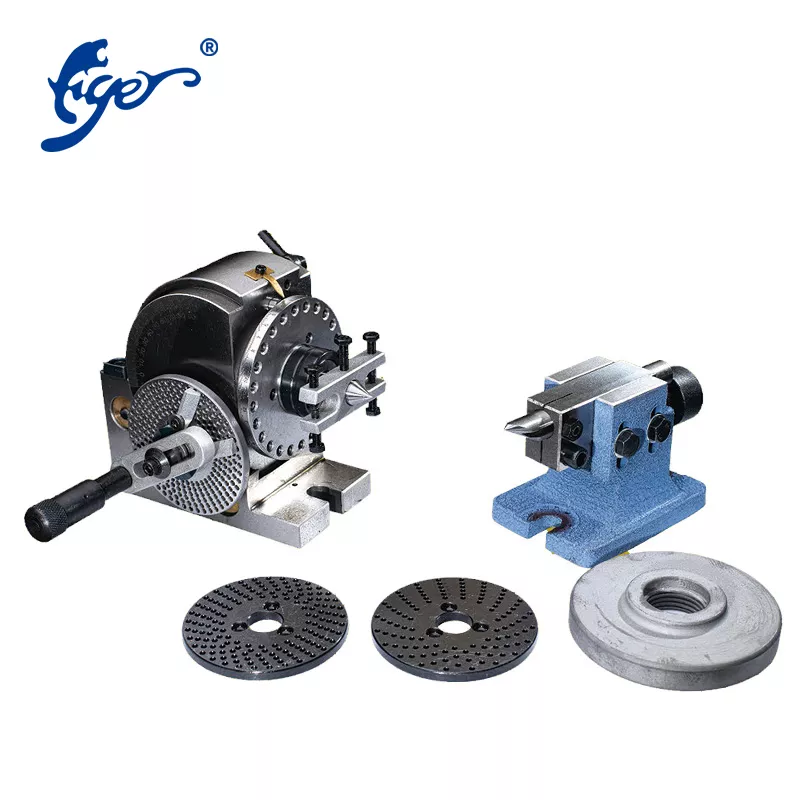

SEMI-UNVERSAL INDEX CENTER B&S TYPE NO.0.NO.1(HEAD-STOCK)
| Model | A | B | H | h | a | b | 9 | Taper of center | Diameter ofSpindle hole | N.W.(kg) |
| BS-0 | 193 | 140 | 173 | 100 | 166 | 90 | 16 | Mt2 | 18 | 22 |
| 7.59 | 5.51 | 6.81 | 3.93 | 6.53 | 3.54 | 0.63 | B&S NO.7 | |||
| BS-1 | 242 | 180 | 220 | 128 | 206 | 113 | 16 | Mt3 | 20 | 35.8 |
| 9.52 | 6.61 | 8.66 | 5.04 | 8.11 | 4.45 | 0.63 | B&S NO.9 |
STANDARD ACCESSORIES
Dividing plate A.B.C.
Numbers of holes of dividing plate(worm gear reduction ratio 1:40)
Unit:mm
| Numbers of hole |
PlateA | 15 | 16 | 17 | 18 | 19 | 20 |
| PlateB | 21 | 23 | 27 | 29 | 31 | 33 | |
| PlateC | 37 | 39 | 41 | 43 | 47 | 49 |
SEMI-UNVERSAL INDEX CENTER B8S TYPE NO.0,NO.1(HEAD-STOCK)
Unit:mm
| Model | A1 | B1 | H1 | h | a1 | b1 | g1 | N.W.(kg) | Mueasurement m² |
| BS-0 | 180 | 78 | 107 | 100 | 130 | 92 | 16 | Packed with the Dividing Head | |
| 6.89 | 3.42 | 4.21 | 3.93 | 3.93 | 3.62 | 0.63 | |||
| BS-1 | 183 | 87 | 128 | 128 | 175 | 124 | 16 | Packed with the Dividing Head | |
| 7.20 | 3.42 | 5.39 | 5.04 | 5.04 | 4.33 | 0.63 | |||
